Lab Overview

Bomb Lab is one of the practical tasks for the “Computer Systems: A Programmer’s Perspective” book by Bryant and O’Hallaron. You’re provided with a binary that consists of six phases, where each expects a certain string as an input to “defuse” it. The prerequisites (in my humble opinion) are x86 assembly, Computers and CPU architecture basics, a bit of some Unix terminal experience and probably some C language understanding.

I haven’t read the book personally, but this self-taught lab appeared to be a decent first practice on my Reverse Engineering journey. The only tool I used was gdb, a default Unix debugger that I got on my WSL environment.

Setup and Workflow

As stated above, I used the one and only gdb debugger on my WSL environment. The bomb binary is compiled with optimizations on, which is why several of the patterns below don’t look like C code that produced them (e.g. loops with the first iteration separated, division done with shifts).

I was also given a source file that includes phase function names only. The workflow was simple and straightforward:

  1. Run gdb ./bomb
  2. Read the existing function names with the info functions command
  3. Set a breakpoint for the current phase or certain instructions (break phase_x, break *0xffffff)
  4. Run the debugger with the solutions input as a text file - run ./solutions.txt
  5. Hit the first “explosion”
  6. Disassemble a given phase function - disas phase_x
  7. Find the deciding comparison and trace backwards to where the values come from
  8. Trace registers (info registers or i r), stack (e.g. backtraceorx/12xw $rsp), certain bytes (e.g. x/1bx $rbx`) and figure out a pattern or idea behind the phase.
  9. Put some input in a solutions text file, goto step 4.

It took me 2 days and quite a few sets of iterations to get used to AT&T assembly syntax to “defuse” the bomb (including the secret phase).

Patterns Learned

I’ll be omitting prologues and epilogues of functions and highlighting only the parts that matters.

“strings_not_equal” pattern

The first function in Phase One I stumbled across was the “strings_not_equal” one:

; prologue...

; get the lengths of two strings (my input & binary's one)
call   0x40131b <string_length> ; x2

mov    $0x1,%edx ; sets the "pessimistic" default (if stirngs lengths are not equal)

; the length gate (jumps to the end of function if lengths differ)
cmp    %eax,%r12d
jne    end_of_function ; lengths differ

; the first characters are compared
movzbl (%rbx),%eax
test   %al,%al ; empty strings check
je     end_of_function
cmp    0x0(%rbp),%al
je     loop ; jumps to the loop if first chars are equal
jmp    end_of_function ; otherwise, strings are not equal

; (+50)
cmp    0x0(%rbp),%al ; same comparison as the one at +43
jne    end_of_function

; loop (+58 offset) - advance both pointers, load the next byte
add    $0x1,%rbx
add    $0x1,%rbp
movzbl (%rbx),%eax
test   %al,%al
jne    +50  ; not a null terminator, hence compare
mov    $0x0,%edx ; terminator reached, every byte matched, return 0

; (+99 offset) sets the return value
mov    %edx,%eax ; all the function's paths end up here

; epilogue...

That was the strcmp() pattern (a function to compare two strings), which is not that hard to notice if you’re familiar with the C language.

Jump Table

In Phase Three I got familiar with the “jump table” concept, which enables the navigation in a Switch statement. I also learned, that jump table works perfectly here as the switch cases grouped closely, and it runs in O(1) constant time.

cmpl   $0x7,0x8(%rsp)
ja     0x400fad <phase_3+106> ; jumps to 'default case' if my input is out of the range
mov    0x8(%rsp),%eax
jmp    *0x402470(,%rax,8) ; the 'indirect' jump to the case by indexing the table

The ja instruction is the “jump if above” unsigned one, hence it also checks unsigned bounds.

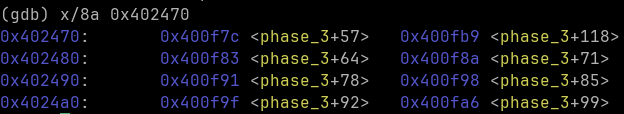

We can inspect the jump table entries with, for example, the x/8a [address] gdb command, which prints us 8 memory addresses and the functions they point to. Phase 3 Jump table entries

Signed division by 2

In Phase Four (which we’ll discuss in more details later), I got familiar with this clever compiler’s approach on the signed divison by 2 approach:

mov    %edx,%eax  ; get the upper bound
sub    %esi,%eax  ; eax = upper - lower (can be positive or negative)
mov    %eax,%ecx
shr    $0x1f,%ecx ; get the 'sign bit' by shifting right by 31 bits
add    %ecx,%eax ; add the sign bit to the bounds difference calculated above
sar    $1,%eax ; shift right by 1, which is a 'by 2 division' simply
lea    (%rax,%rsi,1),%ecx ; result of the division + lower bound

Here, sar instruction rounds toward negative infinity, while C requires rounding toward zero, so adding 1 to negative values before the shift corrects the difference. E.g., -7 >> 1 = -4, but -7 / 2 = -3. Though, it’s a dead end in this particular case as the upper and lower boudns are never negative, the compiler can’t prove that and emits such a form.

Stack canary

In Phase 5 I learned a technique that protects a program against buffer overflow attacks. A random value is placed on the stack above the locals. That way, if someone tries to overwrite a local variable, the canary will be overwritten as well. The secret random value is generated on the program start and stored in Thread Local Storage, a secure memory location.

; prologue
mov    %fs:0x28,%rax ; get a generated value from TLS
mov    %rax,0x18(%rsp) ; put it on the stack
xor    %eax,%eax ; clear the register

; epilogue
mov    0x18(%rsp),%rax ; load the value back
xor    %fs:0x28,%rax ; compare the value with the TLS one
je     0x4010ee <phase_5+140> ; if 0, then the values are equal
call   0x400b30 <__stack_chk_fail@plt> ; if the values doesn't match - terminate

Hard Phase

Phase Four turned out to be the one I got stuck hardly with. The main challenge was in identifying the intent of the function, even though I could solve the phase by satisfying all of the comparisons.

The phase_4 function’s setup parses two input numbers, gates it with cmpl $0xe, 0x8(%rsp) and jbe to make sure that the first input is below or equal 14. Then a fixed range is set, and the func4is called.

The 2nd number was the separate cmpl $0x0, 0xc(%rsp) gate, it simply must be 0.

mov    $0xe,%edx ; edx = 14
mov    $0x0,%esi ; esi = 0
mov    0x8(%rsp),%edi ; rdi = first input number
call   0x400fce <func4>
test   %eax,%eax ; the 'func4' return value must be 0 to succeed
jne    explode

; 2nd number gate
cmpl   $0x0,0xc(%rsp)
je     defused

Now let’s examine func4, which includes the Binary Search algorithm that I couldn’t identify upon my first examination and solution.

The first part of the function is about calculating the middle of the range, the signed division by 2 pattern that I discussed above. Then the middle point and the target value are compared.

; signed division by 2

; compare calculated middle point against my input number
cmp    %edi,%ecx

We have three branches, depending on the comparison result:

1. Midpoint > Target

lea    -0x1(%rcx),%edx ; decrement the upper bound
call   func4 ; recursion
add    %eax,%eax ; double eax (return value)
ret

2. Midpoint == Target

mov    $0x0,%eax
ret

3. Midpoint < Target

lea    0x1(%rcx),%esi ; increment the lower bound
call   func4 ; recursion
lea    0x1(%rax,%rax,1),%eax ; 2 * return value + 1

Insights

Let’s recall that the output of func4 must be 0 in order to defuse the function. The binary search range is from 0 to 14.

We can notice, that in the third branch (when the middle point less than a target), on the recursion return the output value is at least incremented once (lea 0x1(%rax,%rax,1),%eax), poisoning the result permanently.

With that rule, the lower bound is always 0, the upper bound moves as hi = mid - 1 (14 -> 6 -> 2 -> 0), and the middle point at each step is 7, 3, 1, 0. These four midpoints are the only numbers the search reaches without ever taking the upper-half move (where midpoint < target and the return value (rax) is increased). Every other input forces at least one lea 0x1(%rax,%rax,1),%eax in the return chain that poisons the output.

Hence the answer can be any middle point of the lower-half of the given range (0 ... 14).

Where I Got Stuck

Symmetric test data hid the transformation

In Phase Six I input six values, 6 5 4 3 2 1, and the loop produced 1 2 3 4 5 6, hence I read the pattern as an array reversal, when it actually was 7 - value applied.

mov   $0x7,%ecx
mov   %ecx,%edx
sub   (%rax),%edx
mov   %edx,(%rax)

In such unknown functions, using asymmetric input is a good practice so that an output can’t be mistaken for a permutation.

Solving a phase without understanding one branch

In Phase Six, a linked list is created from a set of nodes, and my input affects the order. I read the assembly, managed to find the nodes, figured out the descending order requirement for the nodes’ inner values, but I couldn’t notice the part that selects which node each input maps to.

I couldn’t work backwards to an input as I had read the selection loop as “value picks node” and forgotten that 7 - v sat in front of it (the data transformation problem I mentioned above).

Here’s the transformation part I didn’t pay enough attention to:

mov  %r14,%rax ; rax = &values[0]
mov  $0x7,%ecx

; loop
mov  %ecx,%edx
sub  (%rax),%edx ; edx = 7 - value
mov  %edx,(%rax) ; write back
add  $0x4,%rax
cmp  %rsi,%rax  ; rsi = &values[6]
jne  loop

Summary

This lab was quite a challenge for me, especially considering the lack of experience and proper notes, but I enjoyed solving it a lot with gdb only.

The most important lesson I learned: always make notes, draw workflow schemas, maybe some registers’ purposes, especially when encountering a confusing pattern. That way I can always go back and recall any mutation that happens during a program’s flow.

Now I move on to so called crackmes where I’ll learn much more about Reverse Engineering techniques and tools, especially Ghidra.
